Eyoung Launches a New 3km Laser Rangefinder Module--More Compact and Lightweight for Easy Integration

Table of Content [Hide]

Recently, Eyoung is proud to announce the latest upgrade to our 3km rangefinder module, now featuring a more compact and lightweight design. This enhancement not only maintains the high precision and reliability our customers have come to expect, but also significantly reduces the range finder module's size and weight, making it easier to integrate into a variety of applications. Whether for industrial use, outdoor exploration, or advanced technological systems, the new module offers improved portability and convenience without compromising on range performance. Experience the future of laser ranging devices with our upgraded, state-of-the-art range finder module.

Comparison of Technical Specifications for 3km Laser Rangefinder Modules

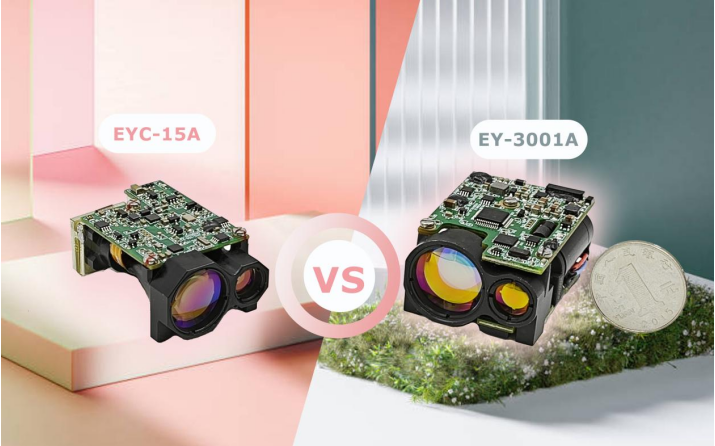

LRF Model	EYC-15A	EY-3001A
Laser Wavelength	1535±5nm	1535±10nm
Maximum Range	≥3000m(on 2.3m×4.6m vehicle)	3000m(on vehicle)
Minimum Range	≤15m	15m
Range Accuracy	±1m	±2m
Range Frequency	Single time, 1~10Hz	Single time, 1Hz, 5Hz
Dimension(L×W×H)	≤48mm×30.5mm×21mm	≤50mm×36.5mm×24mm
Weight	34g	≤58g
Communication Interface	TTL	RS422/TTL
Operating Voltage	4.5V～16V	4.8～8.5V
Standby Power Consumption	≤0.5W	≤0.5W
Operating Temperature	-40℃～+60℃	-40℃～+60℃

Key Differences Between These 3km Laser Rangefinder Modules

Size and Weight: The EYC-15A 3km rangefinder module is significantly smaller (≤48mm×30.5mm×21mm) and lighter (34g) compared to the EY-3001A 3km rangefinder module (≤50mm×36.5mm×24mm and ≤58g).

Range Accuracy: The EYC-15A range finder module offers better accuracy (±1m) compared to the EY-3001A range finder module (±2m).

Range Frequency: The EYC-15A 3km rangefinder module supports a wider range of frequencies (1~10Hz) compared to the EY-3001A 3km rangefinder module (Single time, 1Hz, 5Hz).

Operating Voltage: The EYC-15A range finder module has a broader operating voltage range (4.5V～16V) compared to the EY-3001A range finder module (4.8～8.5V).

This comparison highlights the advancements in the new 3km rangefinder module, particularly in terms of size, weight, accuracy and operational flexibility. Eyoung's laser rangefinder OEM module represents the future of laser ranging devices, suitable for a wide range of demanding applications.
