6-8km High Precision Laser Range Finder Module

LRF Model: EYC-19A

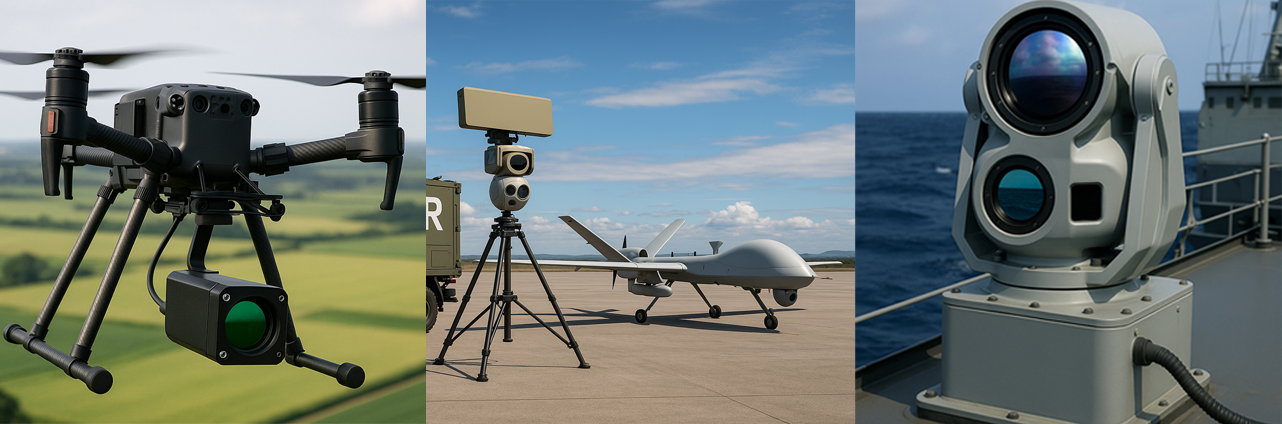

This laser rangefinder module receives a new upgrade as a whole. It offers an optional mechanical mounting interface of front end mounting and side mounting according to customer's platform. The range performance also supports selection of design from 6km to 8km in compliance with the requirement of customer. On the basis of keeping the overall physical characteristics of small size and light weight, its 7 types of ranging frequency from single time ranging to 10Hz ranging, offering customers much more diverse options. With a high adaptability in extremely bad condition, it is much more suitable for integration in high performance electro-optical payloads.

Send Mail

Share It :

Specifications of 6-8km Laser Range Finder Module

Item	Parameter
Laser wavelength	1535nm±10nm
Max. range capability(visibility ≥12km, relative humidity ≤60%, 0.3 reflectivity)	(6km-8km is optional)
For example (8000m LRF module)	Vehicles (2.3m×4.6m): ≥8000m Human(0.5m×1.7m): ≥4500m UAV(0.2m×0.3m): ≥2600m


Min. range capability	≤20m
Ranging accuracy	±2m
Range resolution	≤38m
Accuracy rate	≥98%
Ranging frequency	Single time, 1Hz, 2Hz, 3Hz, 4Hz, 5Hz, 10Hz
Dimension	≤59.5mm×47.6mm×32mm (L×W×H)
Weight	≤69g
Communication type	TTL
Power supply	4.5V～16V
Standby power consumption	≤1mW
Average power consumption	≤4W
Peak power consumption	≤14W@12V
Shock resistance	1200g，1ms
Working temperature	-40℃～+60℃
Storage temperature	-50℃～+70℃

Features of 6-8km Laser Range Finder Module

Smaller dimension and lightweight:
Compared to same level module that can measure vehicles up from 6km to 8km, this module is optimized in size and weight for system integration.
Customizable ranging performance:
The maximum range performance to vehicles(2.3m×4.6m) can be customized from 6km to 8km by manufacturer.
Optional installation methods:
Front end installation and side mounting are both available.
Self-check and temperature acquisition:
By setting and sending a "self-check query" command to the laser range finder module, it will initiate self-check and sends back the current environmental temperature, working status and other information.
Shock resistant:
Shock proof up to 1200g, which has been tested with the whole device.

EYOUNG is ready to offer OEM Laser Rangefinder Module services.
