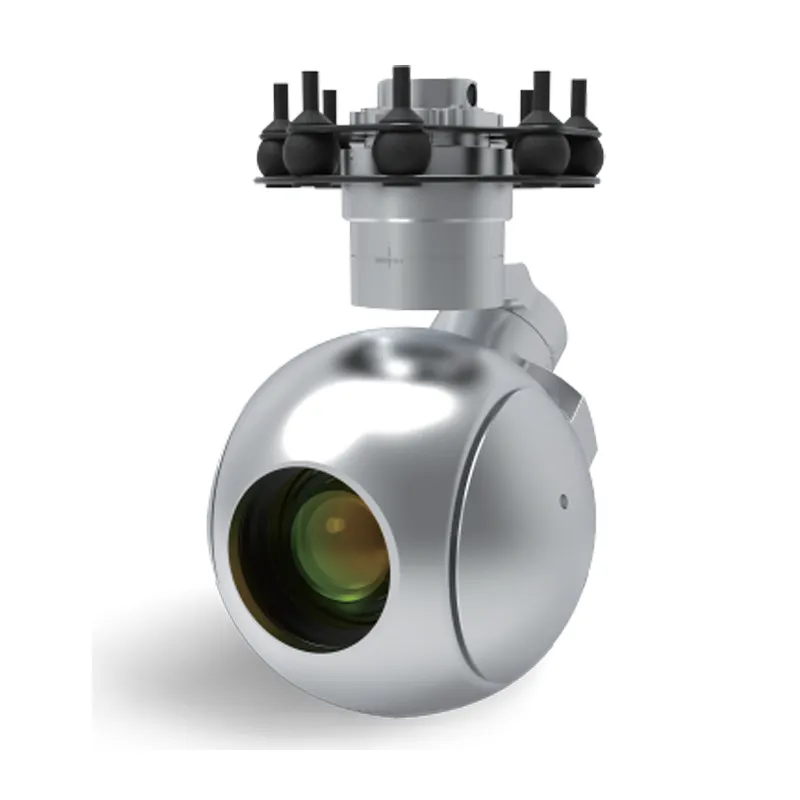

ET50 Intelligent Photoelectric Pod

Name: ET50 Intelligent Photoelectric Pod
Brand: Hainan Eyoung Technology Co., Ltd.

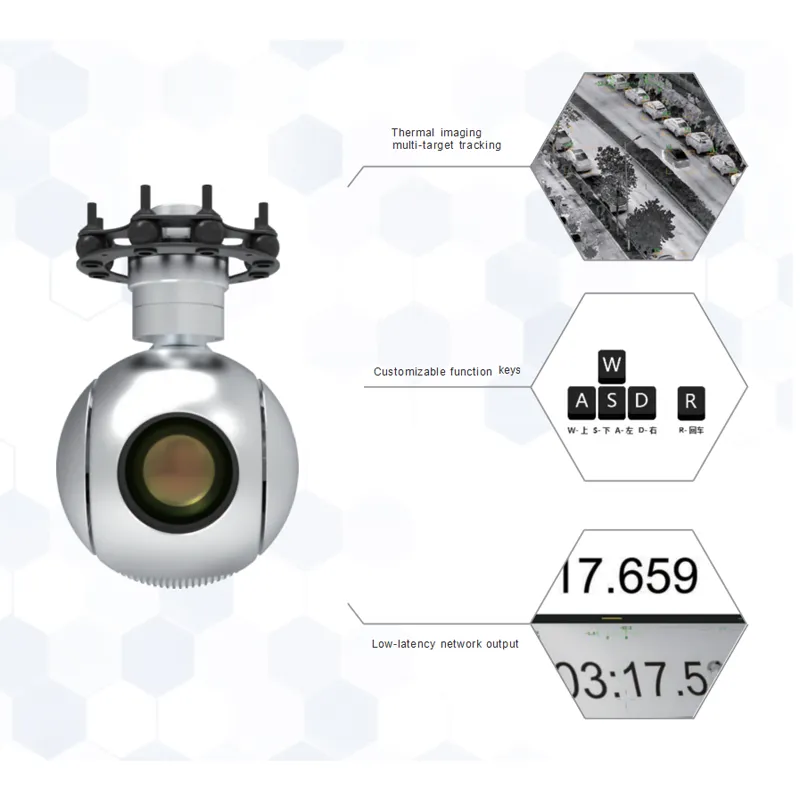

ET50: The intelligent electro-optical pod adopts a three-axis servo stabilization platform and achieves stable imaging under complex on-board motion attitudes through a high-precision servo control system. The system integrates a 1280x1024 uncooled infrared imaging component. This product is compatible with various small and medium-sized rotorcraft/ﬁxed-wing unmanned aerial vehicles and special operation platforms, and is suitable for ﬁelds such as security, emergency response, inspection, and ecological monitoring. It has the capabilities of all-weather target search, situation awareness, image tracking, and target recognition.

Send Mail

Share It :

Specifications of ET50 Intelligent Photoelectric Pod

Project		Parameter
Thermal imaging	Working band	8μm~14μm
	Resolution	1280 x 1024
	Focal length	50mm
	Field of view	17.5°x14°
	Detection range	people 2.6km； vehicles 6.3km
	Recognition range	people 0.6km； vehicles 1.6km
Servo control	Course range	NX 360°
	Pitch range	-120°~40°
	Roll range	±45°
Single object tracking	Target type	General objective
	Tracking rate	≥ 32 pixels per frame
	Update frame rate	≥50FPS
Size and weight	Size	≤ Ф125mmX185mm
Size and weight	Weight	≤ 1.5kg
Environmental	Working temperature	-40°C~ 60°C
Environmental	Storage temperature	-40°C~ 70°C
Multi-target tracking	Target type	People, vehicles, ships, planes
	Recall rate	≥90%
	Precision rate	≥80%
	Target size	32x32@1080p Minimum
	Target quantity	≥20
	Jump rate	≤15%
	Update frame rate	≥20FPS
Video and Storage	Photo format	JPEG
	Video format	MP4, TS
	Encoding format	H.264, H.265
	Video Protocol	RTSP, UDP, etc
	Storage capacity	Maximum 2T
Power supply	Power supply range	11 ~ 28 VDC
	Power consumption	15w (Average)
	Power consumption	30w (Peak)
Electrical interface	Communication	Serial port, 100-megabit network, SBUS
Electrical interface	Video interface	100-megabit network
