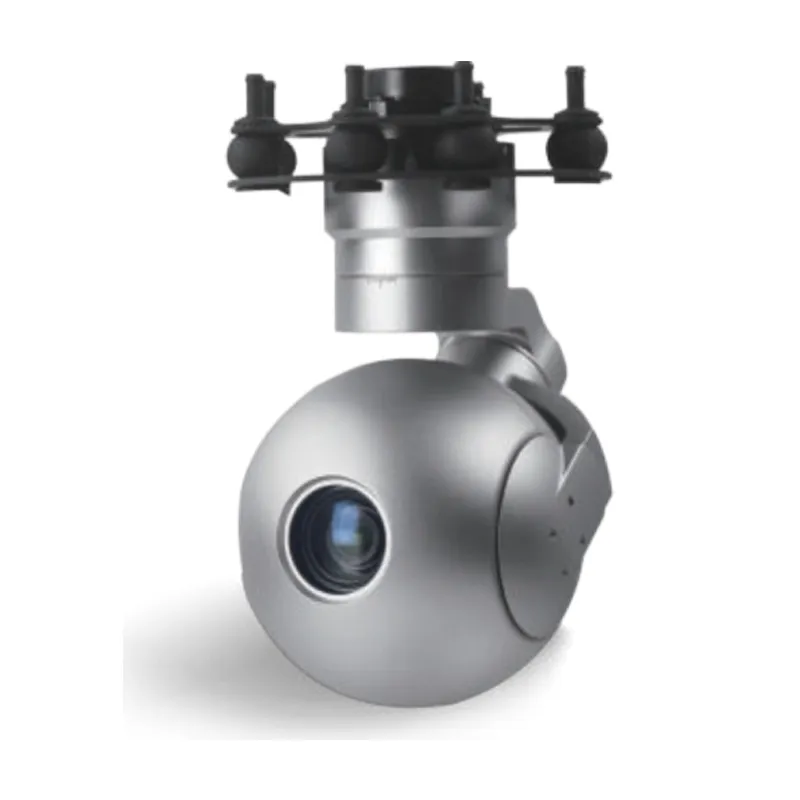

E10 Intelligent Photonic Pod

Name: E10 Intelligent Photonic Pod
Brand: Hainan Eyoung Technology Co., Ltd.

The E10 intelligent electro-optical pod adopts a three-axis servo stabilization platform and achieves stable imaging under complex on-board motion attitudes through a high-precision co-suit control system. The system integrates a 10x visible light camera. This product is compatible with various small and medium-sized rotorcraft/ﬁxed-wing unmanned aerial vehicles and special operation platforms. It is suitable for ﬁelds such as security, emergency response, inspection, and ecological monitoring, and has capabilities such as target search situation awareness, image tracking, and target recognition.

Send Mail

Share It :

Specifications of E10 Intelligent Photonic Pod

Project		Parameter
Visible light	Working band	0.4μm ~ 0.9μm
	Resolution	1920×1080
	Focal length	4.7~47mm
	Optical zoom	10 times
	Field of view	58.3° ×7.1°
	Detection range	people 2.7km； vehicles 3.9km
	Recognition range	people 0.6km； vehicles 1km
Servo control	Course range	Nx360°
	Pitch range	-120°~40°
	Roll range	±45°
Single object tracking	Target type	General objective
	Tracking rate	≥ 32 pixels per frame
	Update frame rate	≥50FPS
Size and weight	Size	≤ Ф110mmX182mm
Size and weight	Weight	≤ 700g
Environmental	Working temperature	-20°C~ 60°C
Environmental	Storage temperature	-45°C~ 70°C
Multi-target tracking	Target type	People, vehicles, ships, planes
	Recall rate	≥90%
	Precision rate	≥80%
	Target size	32x32@1080p Minimum
	Target quantity	≥20
	Jump rate	≤15%
	Update frame rate	≥20FPS
Video and Storage	Photo format	JPEG
	Video format	MP4, TS
	Encoding format	H.264, H.265
	Video Protocol	RTSP, UDP, etc
	Storage capacity	Maximum 2T
Power supply	Power supply	11 ~ 28 VDC
	Average	15w
	Peak value	30w
Electrical interface	Communication	Serial port, 100-megabit network, SBUS
Electrical interface	Video interface	100-megabit network
