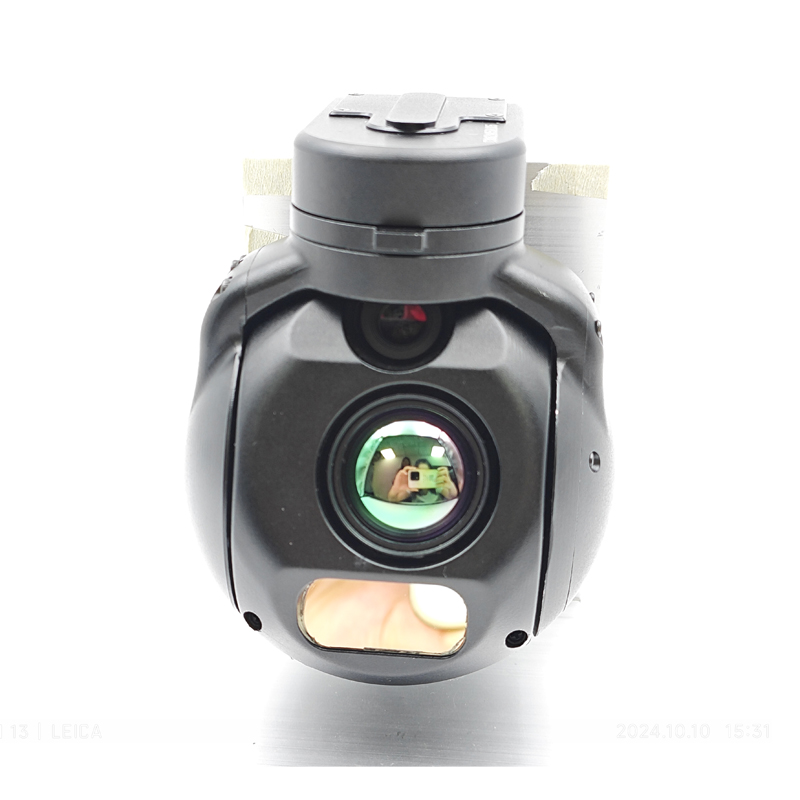

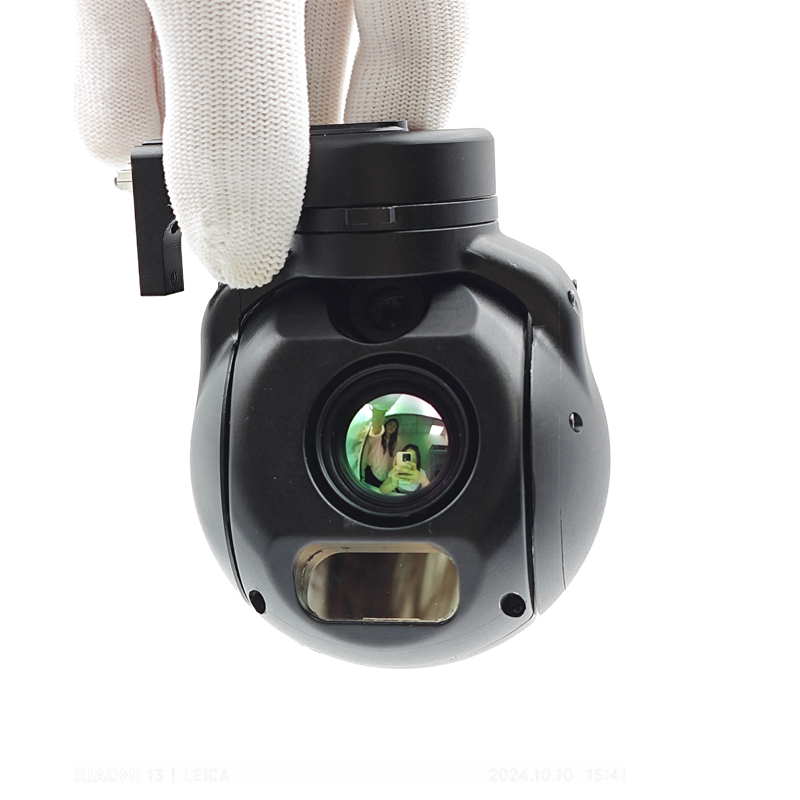

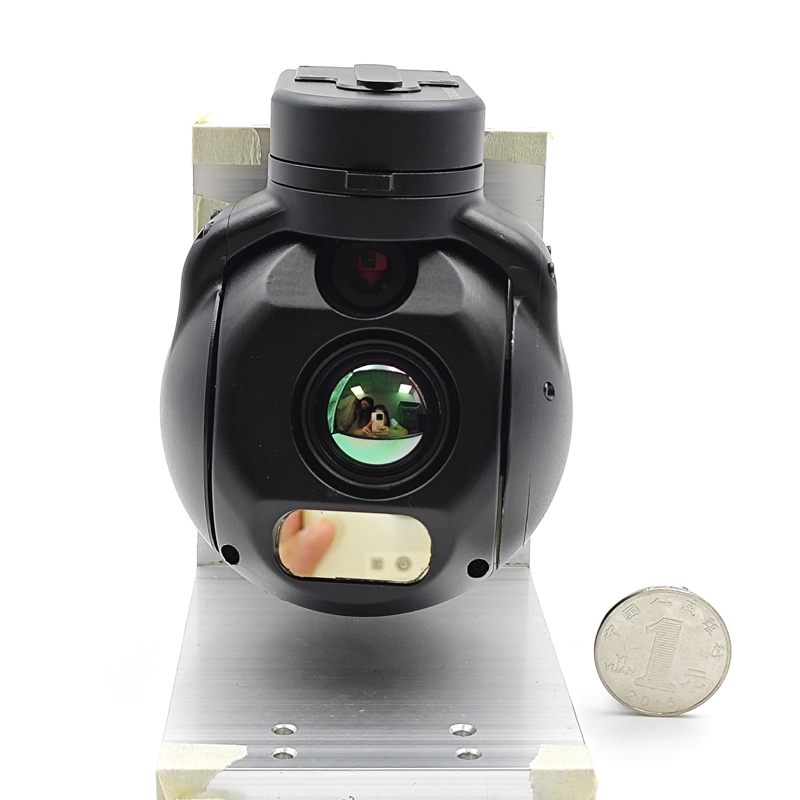

Mini Gimbal Camera Payload with Three-sensor

Name: Mini Gimbal Camera Payload with Three-sensor
Brand: Hainan Eyoung Technology Co., Ltd.

The Mini Gimbal Camera with Three-sensor features a ultra-small size and ultra light weight compared to other payloads at the same level. Our camera system incorporates an infrared sensor, a visible light camera as well as a laser rangefinder. Integrated with a laser rangefinder, the drone gimbal can calculate the distance of the object within 1200m and display them on the screen. It is mainly used for observation, identification, capture, tracking and ranging of vehicles, and other targets, and reporting the image, angle and distance information of the target. It has the characteristics of high stability, high precision and high integration, and can be applied to the UAV to carry out missions such as the reconnaissance, surveillance and target positioning at day and night.

Send Mail

Share It :

Specifications of Mini Gimbal Camera Payload with Three-sensor

No.	Item		Parameters
1	System Parameters	System Type	Two-Axis Gyro-Stabilized
2		Range of Motion	Azimuth：-150°~+150°；Tilt：-100° ~ +40°
3		Angle Measurement Accuracy	≤0.3°
4		Maximum Speed	≥60°/s
5		Maximum Angular Acceleration	≥100°/s2
6	Infrared	Resolution	640×512@50fps
7	Infrared	Filed of View（focal length）	17.5°×14.0（25mm）
8	Visible Light（2× digital zoom）	Resolution	1920×1080@50fps
9	Visible Light（2× digital zoom）	Filed of View（focal length）	19.7°×11.2°（16mm）
10	Laser Rangefinder	Measurement Range	5m~1200m
11	Laser Rangefinder	Ranging Accuracy	±2m
12	Tracking Module	Maximum Frequency	50Hz
13	Tracking Module	Tracking velocity	±48 px/fps
14	Size		≤Φ75mm×98mm；
15	Weight		≤320g
16	Technical port		1-way network video interface，1-way RS232 asynchronous serial port
17	Power Supply		14VDC~28VDC，average power consumption≤6W
18	Environment Conditions		Operating Temperature：-40℃~+55℃；Launch Shock：≥400g

Drawing of Mini Gimbal Camera Payload with Three-sensor

Features of Mini Gimbal Camera Payload with Three-sensor

Ultra light weight of 320g
Ultra small size of Φ75mm×98mm
Two-axis gimbal stabilizer
Auto object identifying and tracking
High shock resistance and anti-interference
Average power consumption lower than 6W

Applications of Mini Gimbal Camera Payload with Three-sensor

Security and Surveillance:

Thermal sensor on drone gimbal offer real-time insights for enhanced security and emergency response, enabling precise intelligence gathering, a holistic understanding of the situation, and better-informed decision-making.

Target Tracking and Attack:

The drone gimbal enables the military mission to be carried out without risk and improving the success rate of operations.

Disaster Response:

The gimbal's thermal imaging system can be used to detect heat signatures in disaster areas, allowing rescue teams to locate survivors who may be trapped beneath rubble or debris.
