5km Laser Range Finder for UAV Optical System

Name: 5km Laser Range Finder for UAV Optical System
Brand: Hainan Eyoung Technology Co., Ltd.

LRF Model: EYC-17A

Engineered for professionals who demand accuracy, adaptability, and endurance, our 5km Laser Range Finder is more than a measurement tool – it’s a tactical edge. Whether you’re developing next-gen UAV systems, coordinating defense missions, or enhancing your aerospace equipment, this range finder is designed to perform in the field and built to be customized for your platform. From heat to frost, this 5km UAV sensor operates flawlessly in extreme temperatures and weather. Its military-grade construction ensures long-term durability, making it a trusted choice for professionals who need performance without limits.

Send Mail

Share It :

Technical Specification of 5km Laser Range Finder for UAV Optical System

Item	Parameter
Laser wavelength	1535±10nm
Measuring performance range	20m~5000m
Measurement resolution	0.1m
Ranging accuracy	±2m（RMS）
Structural material	Aluminum
Accuracy rate	≥98%
Baud rate	115200bps
Ranging frequency	Single time,1Hz~5Hz adjustable
Dimension	62mm×43.5mm×34mm
Weight	≤80g
Communication interface	RS422
Power supply	10V~14V
Average power consumption	2W
Peak power consumption	5W
Operating temperature	-40℃～+70℃

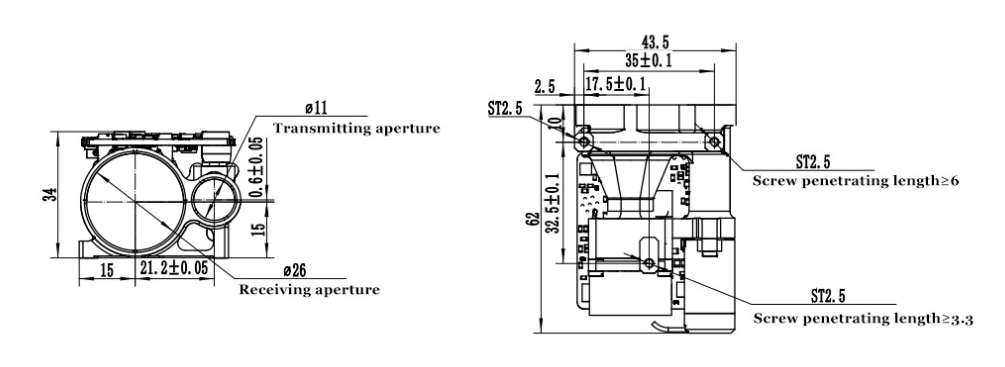

Outline Dimension of 5km Laser Range Finder for UAV Optical System

Features of 10.5km Long Range Laser Rangefinder Module

Reliable 5,000m Range

Get consistent, stable readings even at extended distances – critical for long-range surveillance, reconnaissance, and engagement.

Customizable Weight & Size
Integrate seamlessly into your system with adjustable specs that fit your payload capacity and mission constraints.

Ultra-Stable Performance
Achieve accurate targeting in dynamic environments with minimal error margins, even when mounted on high-vibration platforms.

Optimized for UAVs, Defense, and Aerospace
Whether you're in R&D or deployment, this unit is built to interface smoothly with your tech stack.

Weather-Resistant Design
Ready for action in rain, dust, and variable temperatures – because real-world performance doesn’t wait for clear skies.
