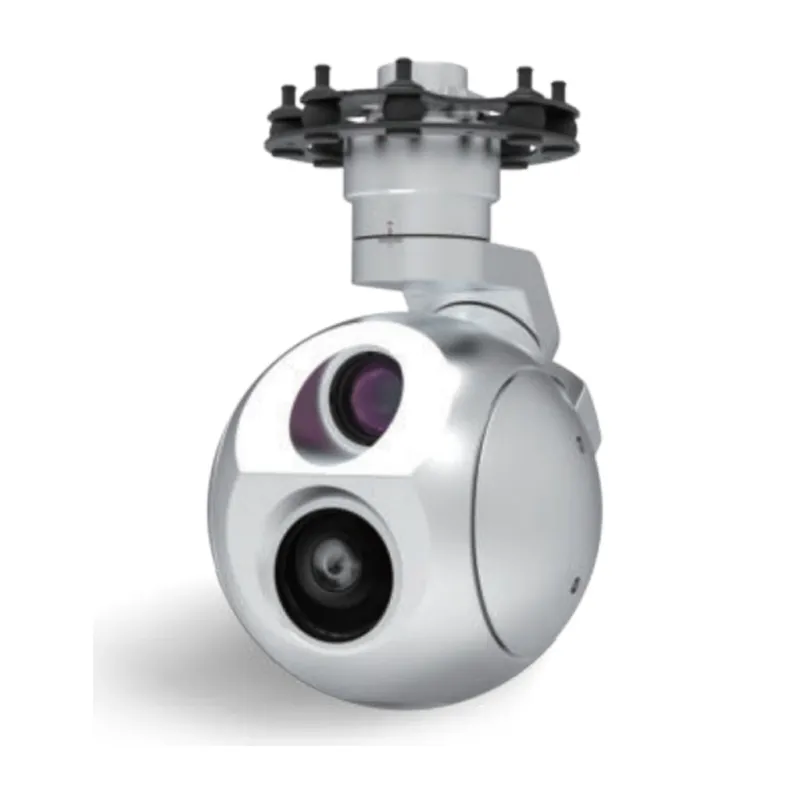

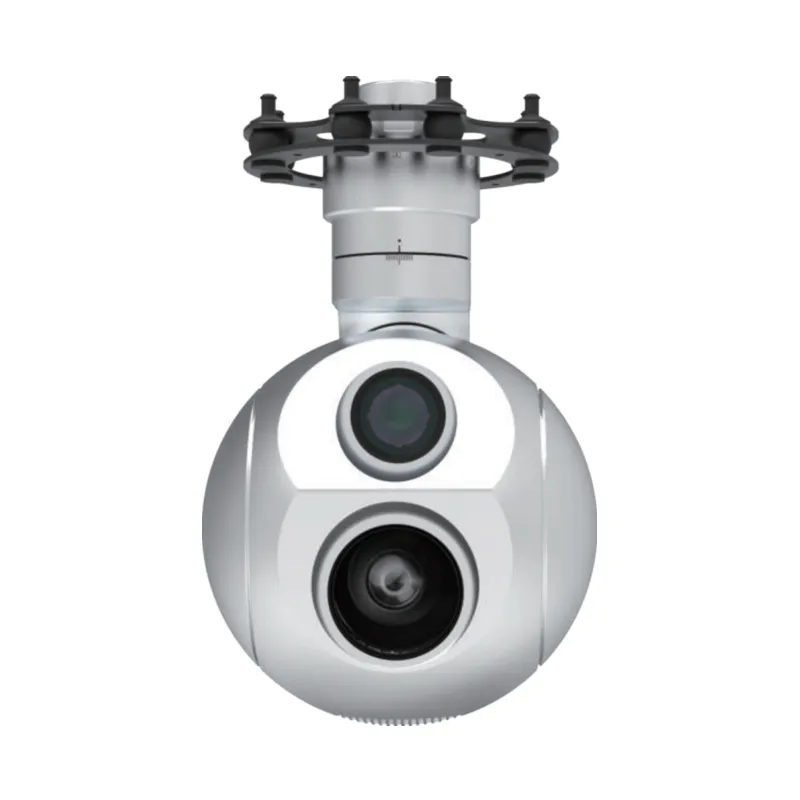

E40T three-axis gyro-stabilized dual-optical gimbal

Name: E40T three-axis gyro-stabilized dual-optical gimbal
Brand: Hainan Eyoung Technology Co., Ltd.

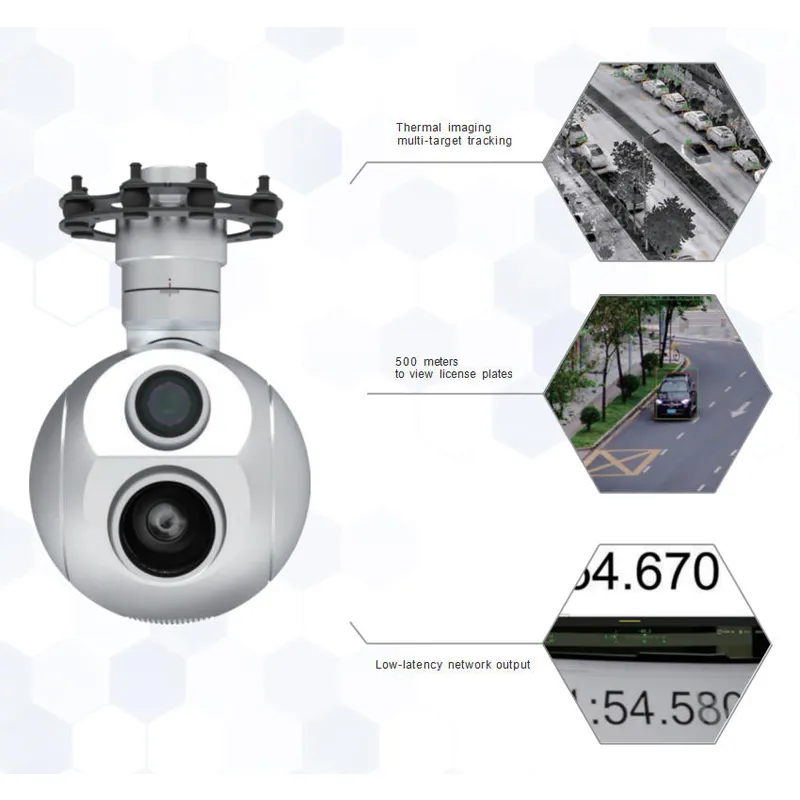

The E40T is a three-axis gyro-stabilized dual-optical pan-tilt, featuring a miniaturized and lightweight industrial design. It is equipped with a 40x continuous optical zoom visible light camera, a long-wave uncooled infrared imaging component, and an anti-delay module, an A1 target recognition and multi-target tracking module. It is mainly applied in the monitoring ﬁelds of ground target imaging, detection, tracking and recognition. It meets the needs of line inspection, accident investigation, emergency rescue, law enforcement evidence collection, anti-terrorism and anti-violence, etc.

Send Mail

Share It :

Specifications of E40T three-axis gyro-stabilized dual-optical gimbal

Project		Parameter
Visible light	Working band	0.4μm ~ 0.9μm
	Resolution	1920×1080
	Focal length	4.25~170mm
	Field of view	66.35°~1.90°
	Detection range	people 11.1km, vehicles 20km
	Recognition range	people 2.7km, vehicles 11km
Servo control	Course range	Nx360°
	Pitch range	-120°~40°
	Roll range	±75°
Single target tracking	Target type	General objective
	Tracking rate	≥ 32 pixels per frame
	Update frame rate	≥50FPS
Size and weight	Size	≤ Ф135mmX195mm
Size and weight	Weight	≤ 1.1kg
Thermal imaging	Working band	8μm ~ 14μm
	Resolution	640×512
	Pixel size	12μm
	Focal length	35mm/F1.2
	Field of view	12.4°x9.9°
	Detection range	people 1.8km vehicles 4.4km
	Recognition range	people 0.4km vehicles 1.1km
Environmental	Working temperature	-20°C~ 60°C
Environmental	Storage temperature	-45°C~ 70°C
Multi-target tracking	Target type	People, vehicles, ships, planes
	Recall rate	≥90%
	Precision rate	≥80%
	Minimum target size	32x32@1080p Minimum
	Target quantity	≥20
	Jump rate	≤15%
	Update frame rate	≥20FPS
Video and Storage	Photo format	JPEG
	Video format	MP4, TS
	Encoding format	H.264, H.265
	Video Protocol	RTSP, UDP, etc
	Storage capacity	Maximum 2T
Power supply	Power supply range	11 ~ 28VDC
	Power consumption	20w (Average )
	Power consumption	50W (Peak)
Electrical interface	Communication	Serial port, 100-megabit network, SBUS
Electrical interface	Video interface	100-megabit network
