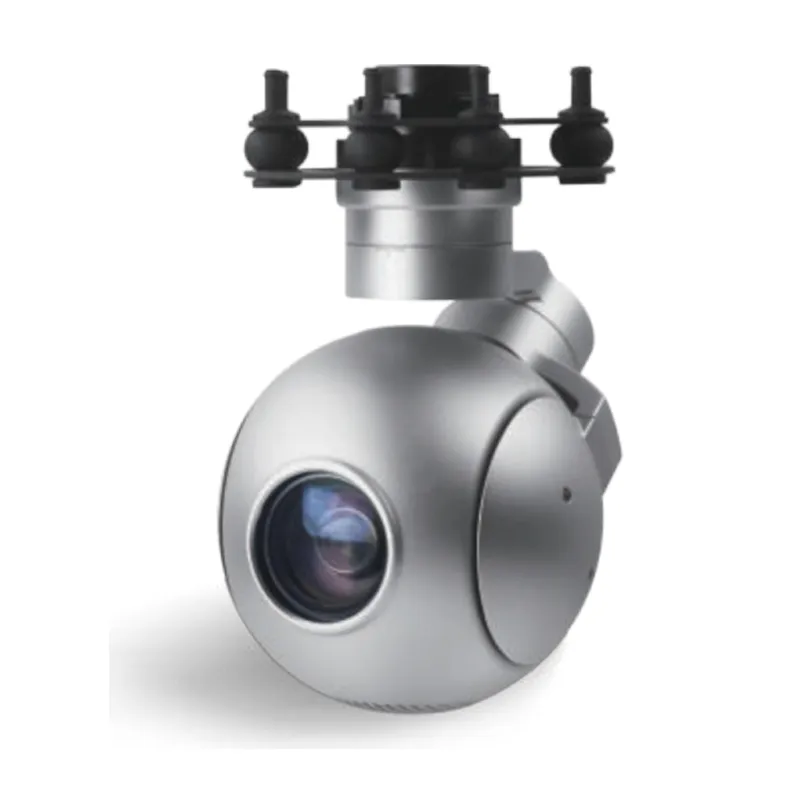

E40 Intelligent Photoelectric Pod

Name: E40 Intelligent Photoelectric Pod
Brand: Hainan Eyoung Technology Co., Ltd.

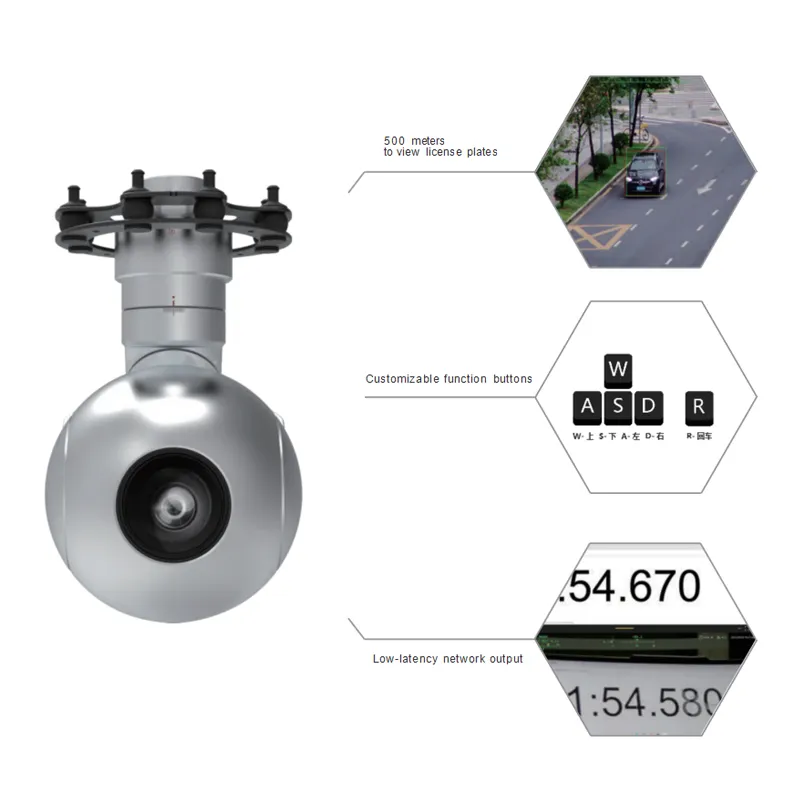

The E40 intelligent electro-optical pod adopts a three-axis servo stabilization platform and achieves stable imaging under complex on-board motion postures through a high-precision servo control system. The system integrates a 40x visible light camera. This product is compatible with various small and medium-sized rotorcraft/-fixed-wing unmanned aerial vehicles and special operation platforms, and is applicable to fields such as security, emergency response, inspection, and ecological moni-toring. It has capabilities such as target search situation awareness, image tracking, and target recognition.

Send Mail

Share It :

Specifications of E40 Intelligent Photoelectric Pod

Serial number	Project		Parameter
1	Visible light	Working band	0.4μm ~ 0.9μm
2		Detector	1/2.8 5MP Sony CMOS Sensor
3		Focal length	4.25~170mm
4		Optical zoom	40 times
5		Field of view	66.35°~1.90°
6		Detection range	people 11.1km, vehicles 20km
7		Recognition range	people 2.7km, vehicles 11km
8	Servo control	Course range	Nx360°
9		Pitch range	-120°~40°
10		Roll range	±75°
11	Single target tracking	Target type	General objective
12		Tracking rate	≥ 32 pixels per frame
13		Update frame rate	≥50FPS
14	Size and weight	Size	≤ Ф115mmX175mm
15	Size and weight	Weight	≤ 1kg
16	Environmental	Working temperature	-20°C~ 60°C
17	Environmental	Storage temperature	-45°C~ 70°C
18	Multi-target tracking	Target type	People, vehicles, ships, planes
19		Recall rate	≥90%
20		Precision rate	≥80%
21		Target size	32x32@1080p Minimum
22		Target quantity	≥20
23		Jump rate	≤15%
24		Update frame rate	≥20FPS
25	Video and Storage	Photo format	JPEG
26		Video format	MP4, TS
27		Encoding format	H.264, H.265
28		Video Protocol	RTSP, UDP, etc
29		Storage capacity	Maximum 2T
30	Power supply	Power supply range	11 ~ 28VDC
31		Power consumption(Average)	15W
32		Power consumption(Peak)	50W
